Simple, effective, robust.

Enphase

  • voltPV are proud to be enphase Certified installers!

  • With individual microinverters per panel, system reliability is increased. If one panel or microinverter malfunctions, the rest of the system continues to operate.

  • Enphase systems can be easily expanded by adding more panels and microinverters as needed. This flexibility allows homeowners to start with a smaller system and gradually increase capacity to meet their growing energy needs.

  • Each panel operates independently, maximizing energy production even in shaded or partially obstructed conditions. This is unlike string inverters, where a single shaded panel can significantly reduce the output of the entire string.

  • Enphase IQ microinverters have a 25-year warranty, while the IQ Battery 5P offers a 15-year warranty up to 6,000 cycles!

  • The IQ 5P Battery has 3.84kW of power available from each pack, three units will provide 11.52kW of power!

How does enphase work?

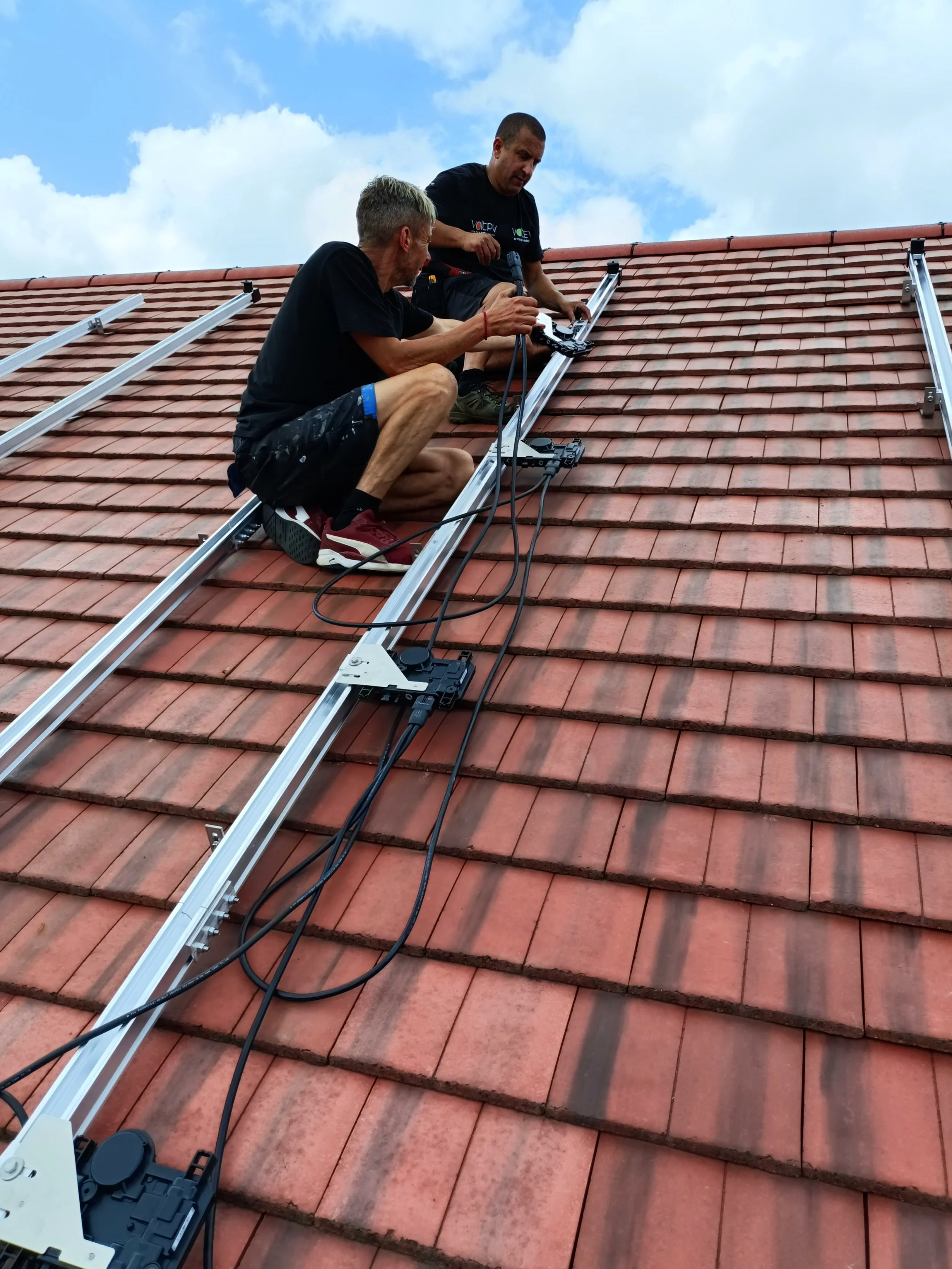

Enphase microinverters being installed by Colin & Chris in Horsham, West Sussex

1. Sunlight to DC Power:

  • Solar panels absorb sunlight and convert it into direct current (DC) electricity.

2. DC to AC Conversion:

  • An Enphase microinverter is installed beneath each solar panel.

  • It receives DC power from the panel and converts it into alternating current (AC) power, the type of electricity used in homes.

3. Independent Operation:

  • Each microinverter operates independently, optimising the energy output of its corresponding panel.

  • This means that if one panel is shaded or partially obstructed, it won't significantly impact the energy production of other panels.

4. Power to Your Home:

  • The AC power generated by each microinverter is then fed into your home's electrical system.

  • This power can be used to charge your battery, power appliances, lights, and other electrical devices.

5. Monitoring and Communication:

  • Enphase microinverters also transmit performance data to the Enphase Envoy, a communication gateway.

  • The Envoy collects data from all the microinverters and sends it to the Enphase Enlighten platform, allowing you to monitor your system's performance online.

Key Advantages of This System:

  • Increased Energy Production: Optimizes energy output, especially in challenging conditions like shading or partial obstructions.

  • Enhanced Safety: Operates at low voltage AC, reducing safety hazards.

  • Improved Reliability: Individual operation minimizes the impact of a single panel or microinverter malfunction.

  • Advanced Monitoring: Provides valuable insights into system performance and enables proactive maintenance.

Contact voltPV today to see if enphase is the right choice for your solar energy needs.

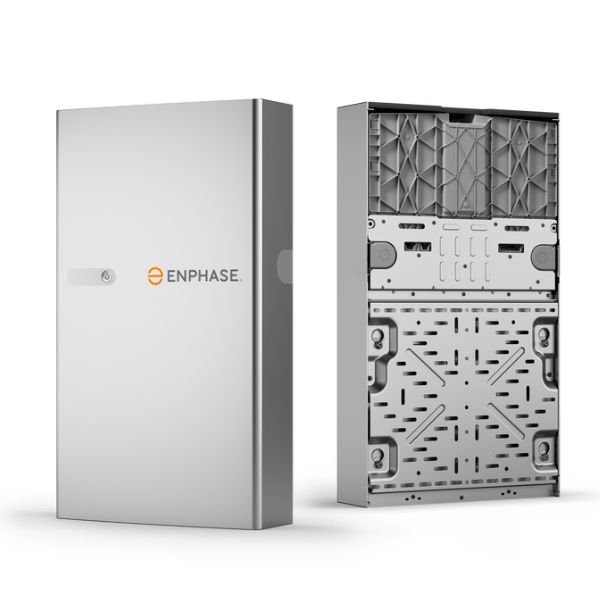

Enphase IQ 5P Battery

High Energy Capacity: With a 5.0 kWh usable energy capacity per pack, it can store a significant amount of solar energy for use during evenings or power outages.

  • Powerful Output: It boasts a continuous output power of 3.84 kW, capable of powering essential appliances and electronics during grid interruptions.

  • Integrated Microinverters: The inclusion of six embedded IQ8D-BAT microinverters within the battery itself enhances its power delivery and efficiency. Only five are actually used and one is set aside for redundancy. This is a well engineered and reliable unit.

  • Scalability: While powerful on its own, the IQ Battery 5P can be easily expanded by adding more units to meet your growing energy storage needs.

  • 15 Year Warranty: The longest standard warranty in the home energy storage market.

This combination of features makes the Enphase IQ Battery 5P a robust and effective solution for homeowners seeking to maximize the benefits of their solar energy systems and enhance their energy independence.

Contact voltPV today for a quote for your enphase IQ 5P.
